PPWR Wooden board

PPWR Wooden board

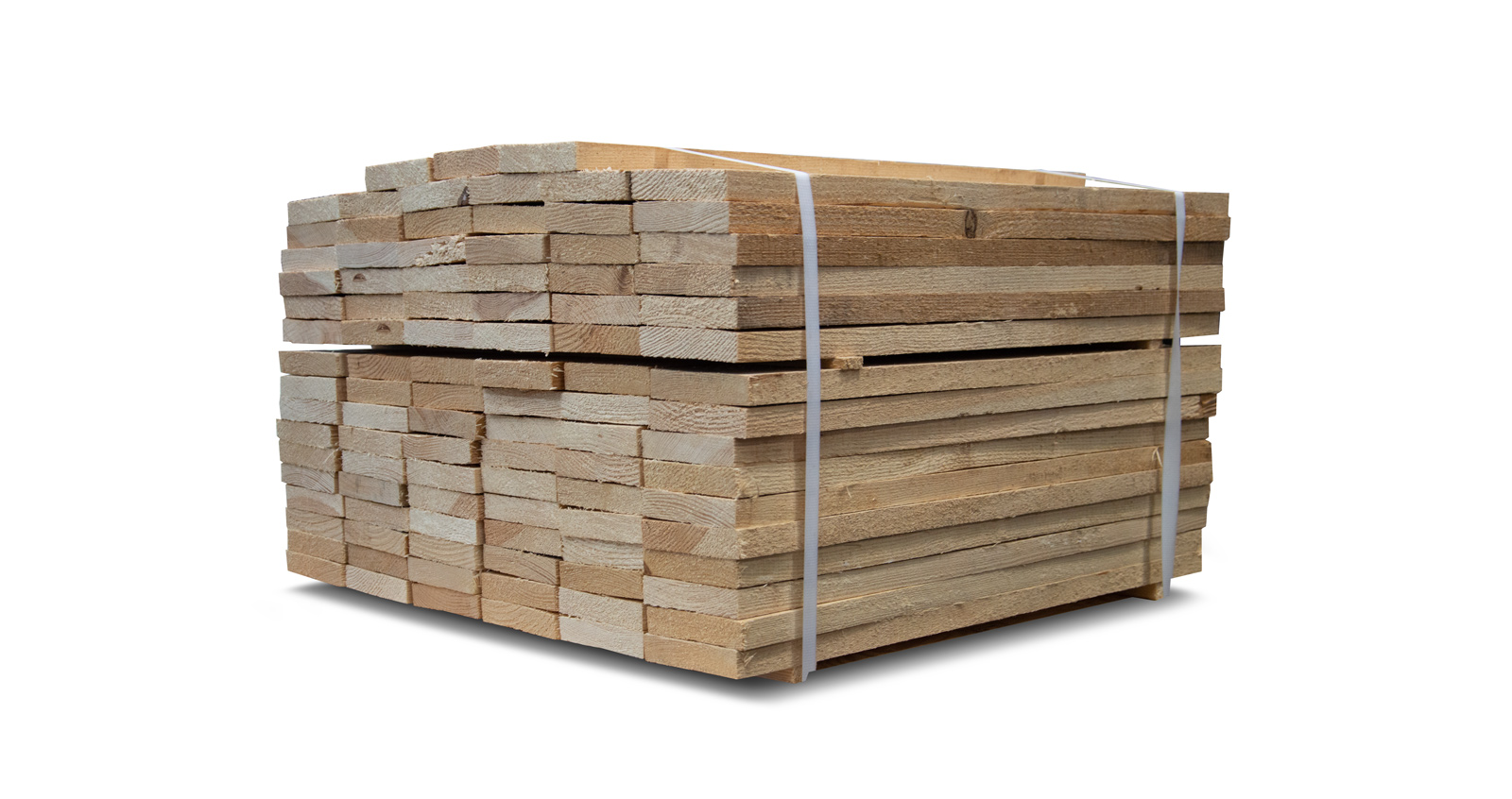

Wooden board are made of softwood

Technical data Application Products

Wooden boards used to secure cables wound around drums. They protect the cables from damage.

Wooden boards used to secure cables wound around drums. They protect the cables from damage.

Cat. no.	Wooden boards	Thickness (mm)	Width (mm)		Length (mm)	Number of boards per set (pcs)	Weight of one set (kg)
OP0088	6	20	100		476	20	11
OP0089	6F	20	100		476	20	10
OP0090	7	20	100		476	24	14
OP0091	7F	20	100		476	24	11
OP0092	8	20	100		476	27	15
OP0093	8A	20	100		650	27	21
OP0094	8F	20	100		476	27	13
OP0095	9	20	100		660	31	25
OP0096	9F	20	100		660	31	20
OP0097	10	20	100		660	33	26
OP0098	10F	20	100		660	33	22
OP0099	12	20	100		810	40	39
OP0100	12F	20	100		810	40	32
OP0101	14	20	100		824	46	45
OP0102	14F	20	100		824	46	38
OP0103	15	20	100		824	49	48
OP0104	15F	20	100		824	49	40
OP0105	16	20	100		1028	53	65
OP0106	16F	20	100		1028	53	54
OP0107	18	20	100		1028	58	72
OP0108	18F	20	100		1028	58	60
OP0109	20	20	100		1054	65	82
OP0110	20F	20	100		1054	65	69
OP0111	21	20	100		1480	68	121
OP0112	21F	20	100		1480	68	101
OP0113	22	20	100		1280	72	111
OP0114	22F	20	100		1280	72	92
OP0115	24	25	100		1390	78	163
OP0116	24A	25	100		1580	78	154
OP0117	24F	25	100		1390	78	136
