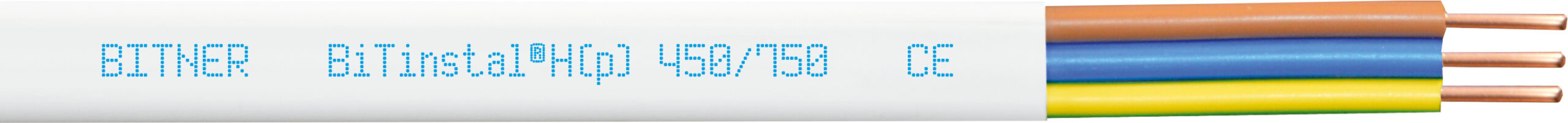

BiTinstal®H(p) 450/750V

Flat installation cable, halogen-free

Indoor application

Vertical flame propagation for a single cable (EN 60332-1-2)

Vertical flame spread of vertically-mounted bunched cables (EN 60332-3)

Halogen-free (EN 60754)

Low smoke emission (EN 61034)

B2ca

Technical data Application Products

Basic

Type: Control and power cables
Operating voltage: 450/750 V
Voltage test: 2500V

Operating temperature

fixed installation from: -30°C
fixed installation up to: 80°C
Minimum installation temperature: -5°C

Cable construction

Conductor material: copper wires
Core construction: Single-wire conductor, Class 1 (according to EN 60228, IEC 60228)
Insulation type: LSOH
Core arrangement: flat cable
Sheath type: LSOH
Sheath color: white

Fire and functional properties

Halogen-free, Low smoke emission EN 61034
Fire classification: B2ca

Flame retardant

For a single insulated cable, For vertically-mounted bunched cables

Installation conditions

Internal application

additional features

Flat cable

Halogen-free instal cables, rated 450/750V, designed for power and lighting installations. Due to high reaction-to-fire class, cables are intended for use in buildings with increased fire safety requirements. They are suitable for operation in dry and damp rooms, both within and on walls, as well as in masonry walls and in concrete (only fixed installations). They may also be used for external application but suitably protected against direct exposure to sunlight. When buried underground, cables should be installed in pipes and cable ducts.

Note:
BiTinstal®H(p) 3G1,5mm2 – halogen-free instal flat cable with three 1.5mm2 cores, with protective core

Cat. no.	n x mm²	Outer diameter [mm]	Approximate cable weight [kg/km]	Insulation colours
B50900	3G1,5 mm2	11,4 x 5,5	120	brown, blue, green-yellow
B50902	4G1,5 mm2	13,4 x 5,5	167	brown, black, grey, green-yellow
B50904	5G1,5 mm2	17,3 x 5,5	204	brown, black, blue, grey, green-yellow
B50901	3G2,5 mm2	12,8 x 5,8	155	brown, blue, green-yellow
B50903	4G2,5 mm2	15,9 x 5,8	214	brown, black, grey, green-yellow
B50905	5G2,5 mm2	19,2 x 5,8	251	brown, black, blue, grey, green-yellow
